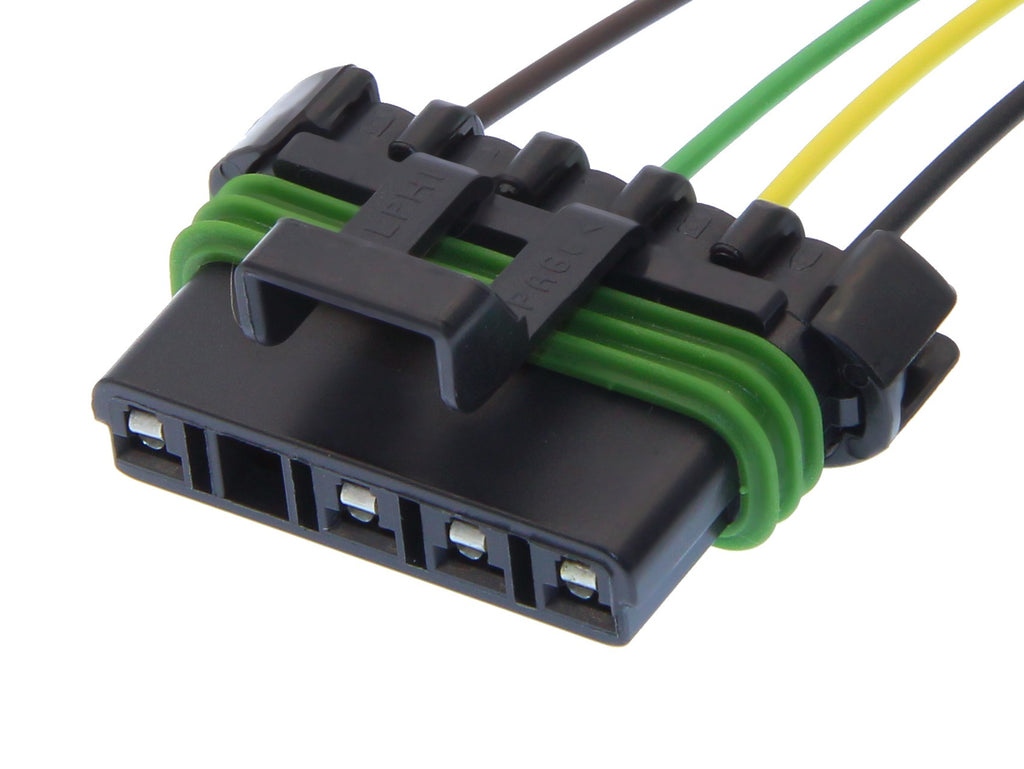

1988-2000 GM Truck and SUV Tail Light Circuit Board Connector Pigtail Right Side

  • Sale
  • $11.45
  • Regular price $12.95


1988-2000 GM Truck and SUV Tail Light Circuit Board Connector Pigtail Right Side



Details

  • New pigtail connector kit to repair the Tail Light Circuit Board connector for the listed applications.
  • Interchange Part #'s: PT1014, PT1937, 15305873, 88860492, 1P1307, 645593
  • Uses the same Delphi/Packard connector, terminals, seals and parts as the original factory connector.
  • Assembled in our shop using the factory correct cross linked polyethelene high temperature TXL wire in the proper gauge.
  • We use production Delphi or Rennsteig tooling for all crimps to ensure proper performance.

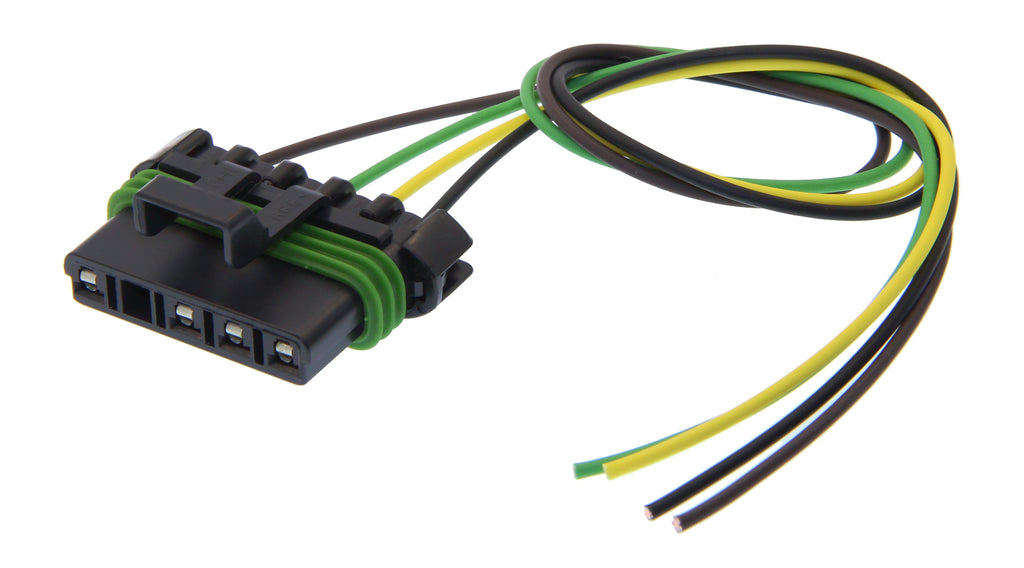

  • Approximately 12" long leads from back of connector gives you extra length to work with.
  • All wire is 18 Gauge on this pigtail in the most common factory color scheme.

Wire

A: Black - Ground
B: Yellow - Stop/Left Side Turn Signal 12 v Power
C: Light Green - Reverse Light 12 v Power
D: Unused/Blocked Cavity
E: Brown - Stop /Tail/Marker/Parking Light 12 v Power

(Please email us for custom wire colors and/or lengths, we'll be happy to accommodate your needs.)

Application

Fits GM Trucks and SUVs That Use These GM Circuit Boards: Left Side part # 16511565  Right Sidepart # 16511566 or aftermarket equivalent. May fit other applications as well.

For the left side pigtail search for EFI Performance part # 210-0232

Fits the following models:

1988-2000 C and K Trucks
1992-1999 C and K Suburban
1992-1994 Cand K Blazer
1995-2000 Tahoe
1992-2000 Yukon
