Manifold Absolute Pressure Connector Pigtail Kit
For 90-92 Tuned Port Injection and 88-92 Throttle Body Injection
Details
- EFI Performance Wiring part # 210-0103
- Interchange part #s: PT123, 12085502

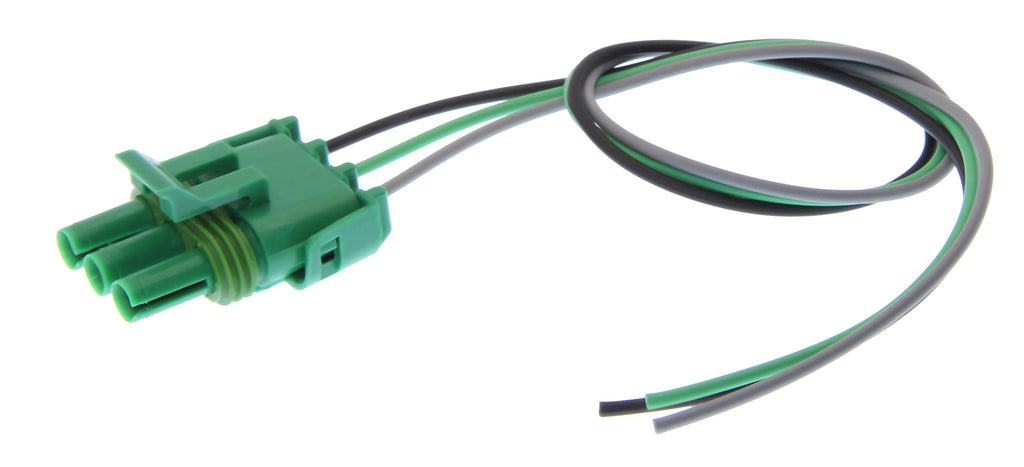

- New pigtail assembly to repair the MAP Sensor connector for the listed applications.

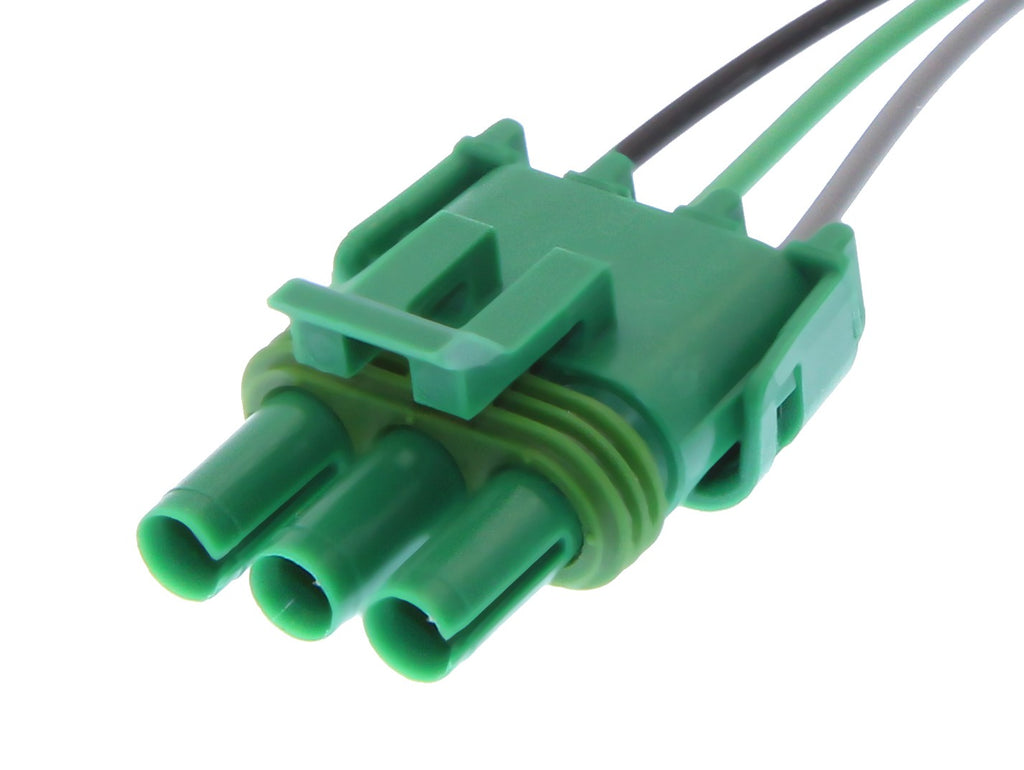

- Uses the same Delphi/Packard connector, terminals, and seals as the factory wiring harness.
- Assembled in our shop using the factory correct cross linked polyethelene high temperature TXL wire in the proper gauge.
- GM correct Black, Light Green, and Gray wiring.
- Long 12" leads from back of connector.
- Assembled in the USA
If your application requires different wire colors, please email us in advance and we will let you know if we have the correct color wire in stock.
Application
Fits the following models:
1990-1992 Camaro 305/350 TPI
1990-1992 Firebird 305/350 TPI
1988-1992 Camaro 305 TBI
1988-1992 Firebird 305 TBI
1990-1991 Corvette 350 TPI
(Also fits the following cars but is a heavier gauge of wiring)1992-1995 Corvette 350 LT1
1996 Corvette 350 LT4
1993-1997 Camaro 350 LT1
1993-1997 Firebird 350 LT1
May fit other models as well, please review picture(s).
