Oil Pressure Sensor Connector Pigtail 1997-2008 GM Chevy LS1 LS4 LS6

  • Sale
  • Regular price $7.25

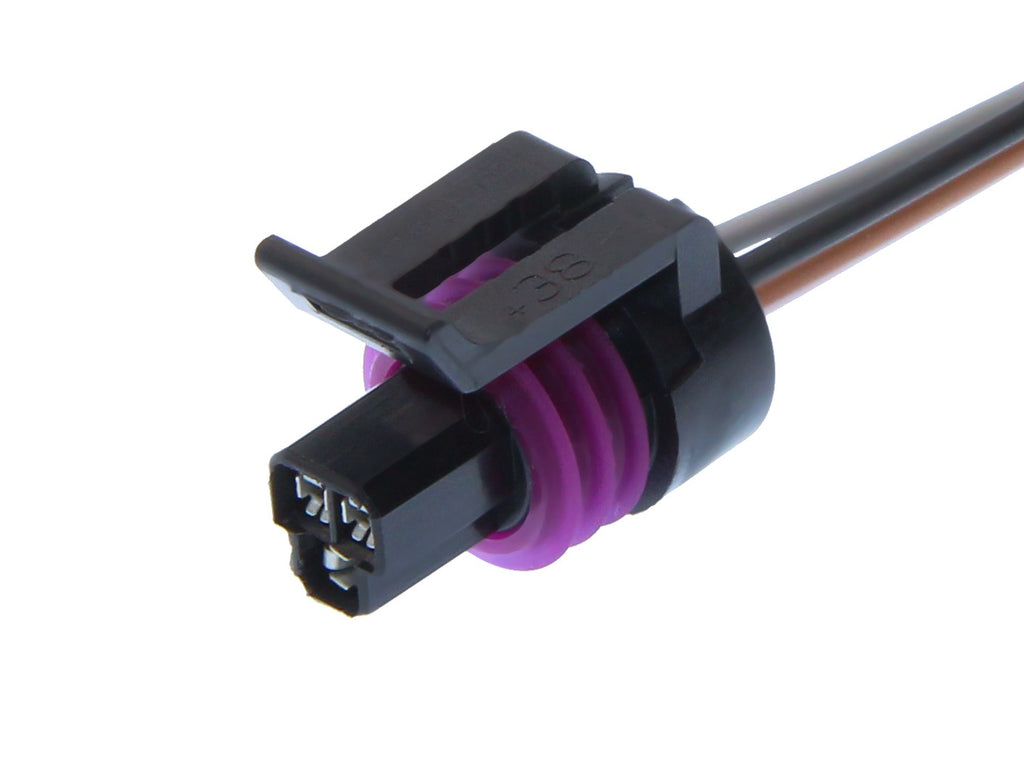

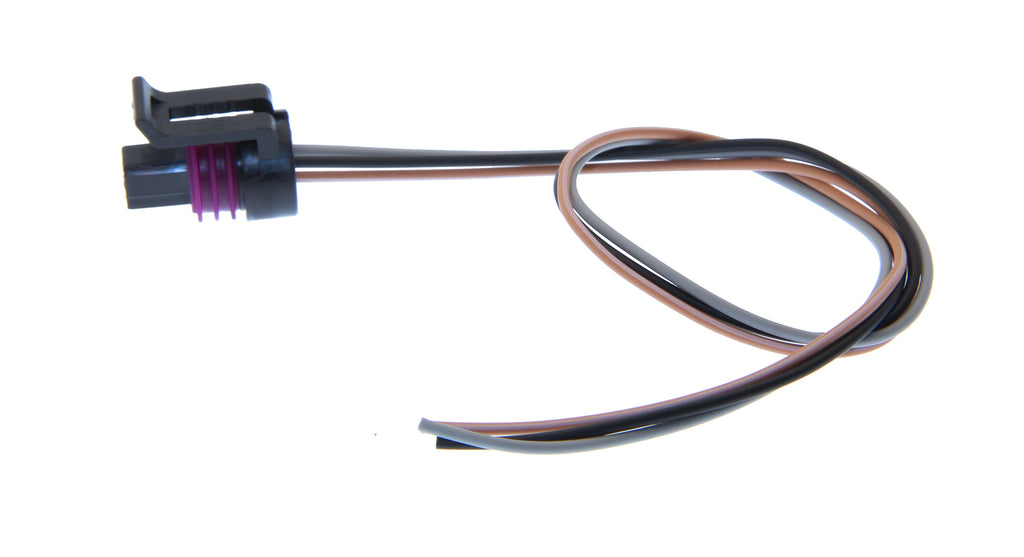

Oil Pressure Sensor Connector Pigtail

1997-2008 GM Chevy LS1 LS4 LS6

Details

  • EFI Performance Wiring part # 210-0238
  • Interchange part #s: PT1825, PT1497, PT375, PT2319, 12102748, 12126473, 1P1065, 1P1839, 15306432, 88987969, 88988107, 88988144, 88988301, S619, 84591, 84598, 5017150AA
  • New pigtail connector kit to repair the Oil Pressure Sensor connector for the listed applications.
  • Uses the same Delphi/Packard connector, terminals, seals and parts as the original factory connector.
  • Assembled in our shop using the factory correct cross linked polyethelene high temperature TXL wire in the proper gauge.
  • We use production Delphi or Rennsteig tooling for all crimps to ensure proper performance.
  • Approximately 12" long leads from back of connector gives you extra length to work with.
  • Assembled in the United States.

Wire

A: 20 Ga Black
B: 20 Ga Gray
C: 20 Ga Tan with White Stripe

(Please email us for custom wire colors and/or lengths, we'll be happy to accomodate your needs.)

Application

2004-2006 Pontiac GTO
2006-2008 Impala SS LS4
2006-2007 Monte Carlo SS with LS4
2003-2008 GM and Chevy Trucks with 4.8l 5.3l 6.0l 6.2l V8 Engines

Fits the following Oil Pressure Sensors
AC Delco: D1846A
GM : 12573107, 12614969, 12616646
