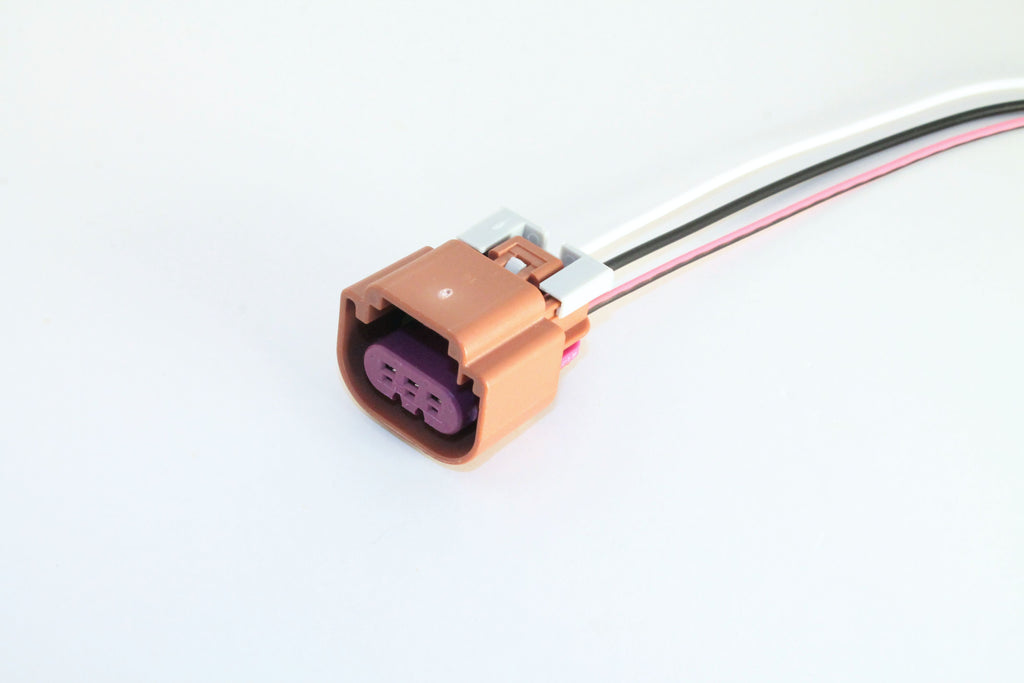

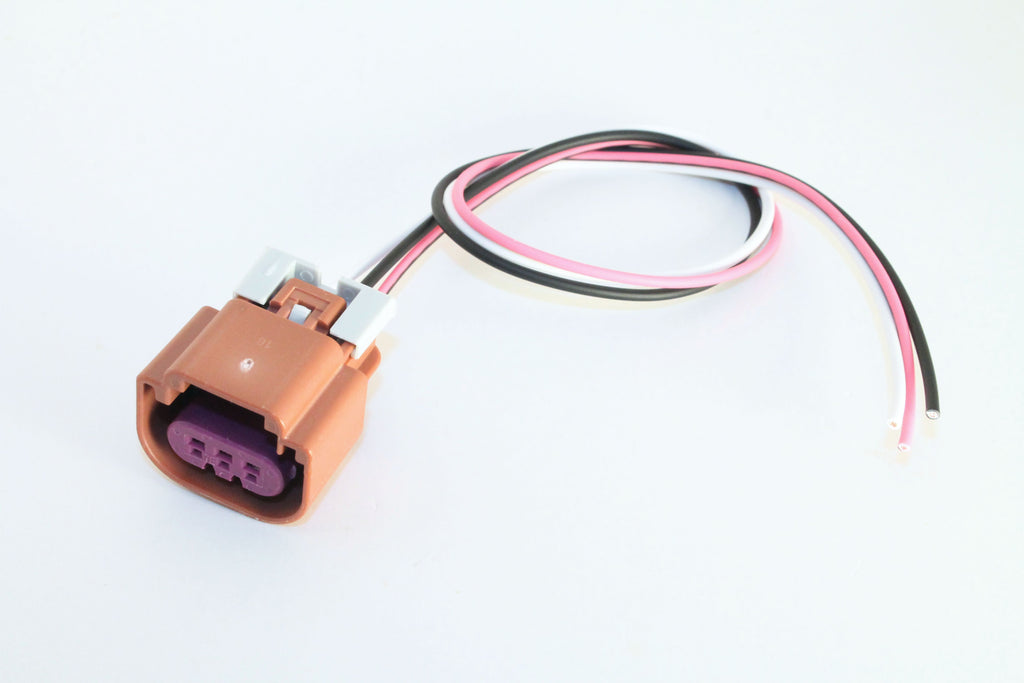

GM E85 Flex Fuel Sensor Connector Pigtail Plastic Body Fuel Composition Ethanol
Details
- EFI Performance Wiring Part # 210-0234
- New Fuel Composition Sensor Pigtail.
- Uses the same Delphi/Packard connectors, terminals, and seals as the factory wiring harness.
- Assembled in our shop using the factory correct cross linked polyethelene high temperature TXL wire in the proper gauge.
- Approximately 12" long wires.
- If you need a longer length or different color wires please email us, we will be happy to build it for you.
- Assembled in the USA.
Wire Colors
1: 18 Ga Pink with Black Stripe -To 12v Ignition Source, Key in Run Position - Sensor Power
2: 18 Ga Black - To Common Computer Ground - Sensor Ground
3: 18 Ga White - To Computer - Ethanol Percentage and Fuel Temperature Signal
Application
Fits Second generation GM E85 plastic housing sensors 2006-up manufactured by Continental
AC Delco / GM # 13577394, 13577379, 13577429 or aftermarket equivalent
For the first generation metal sensor connector search for EFI Performance part # 210-0235
