LS2 LS3 LS7 6 Wire Throttle Body Actuator Connector Pigtail Plug GM L99

  • Sale
  • $13.95
  • Regular price $15.95


LS2 LS3 LS7 6 Wire Throttle Body Actuator Connector Pigtail Plug GM L99

Details

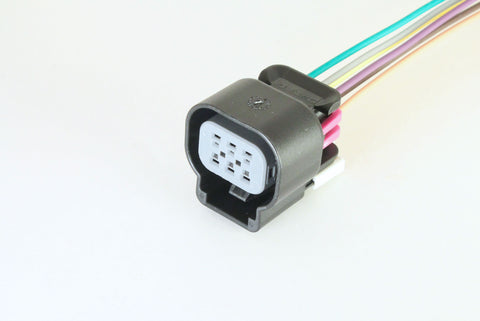

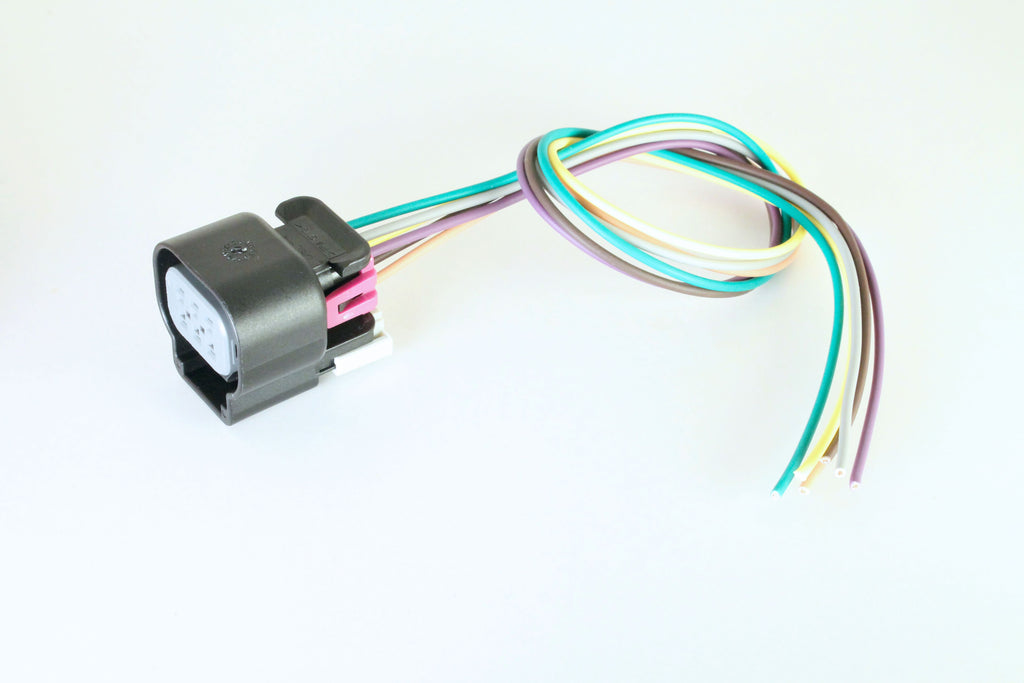

  • New 6 Wire Throttle Body Actuator Connector Pigtail.
  • Uses the same Delphi/Packard connectors, terminals, and seals as the factory wiring harness.
  • Assembled in our shop using the factory correct cross linked polyethelene high temperature TXL wire in the proper gauge.
  • Approximately 12" long wires.
  • Built using 20 Gauge wire in the most common color scheme.
  • Assembled in the United States.
  • EFI Performance Wiring Part # 210-0230
  • If you need a longer length or different color wires please email us, we will be happy to build it for you.

Wire Colors

A: Brown - TAC Motor Control - 2
B: Yellow - TAC Motor Control - 1
C; Tan with White Stripe - Low Reference
D: Dark Green - TP Sensor Signal 1
E: Light Blue with Black Stripe - 5-Volt Reference
F: Purple - TP Sensor 2 Signal

Application

Fits the following models:

Fits many GM engines with a 6 Wire (2 rows of 3) Throttle Body Connector including LS2, LS3 and LS7, may fit other applications as well.
