Crankshaft Position Sensor Pigtail Connector GM 3.8L Camaro Firebird Bank 1
Also fits other GM 3.1L and 3.8L Applications
Details

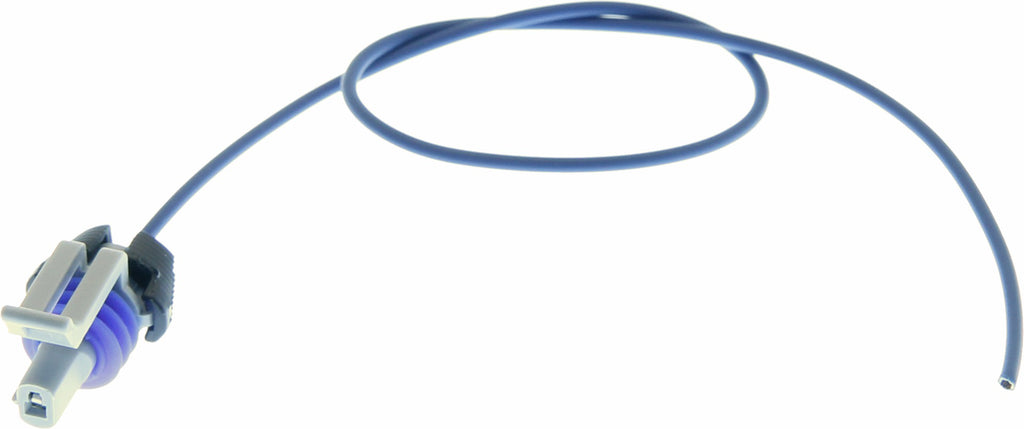

- New Knock Sensor Connector Pigtail.
- Correct color wire for Bank 1
- EFI Performance Wiring Part # 210-0243
- Fits GM Part #s: 12176800, 15306070, 15306376
- Interchange Part #s: PT1233, S1214, 1P1432

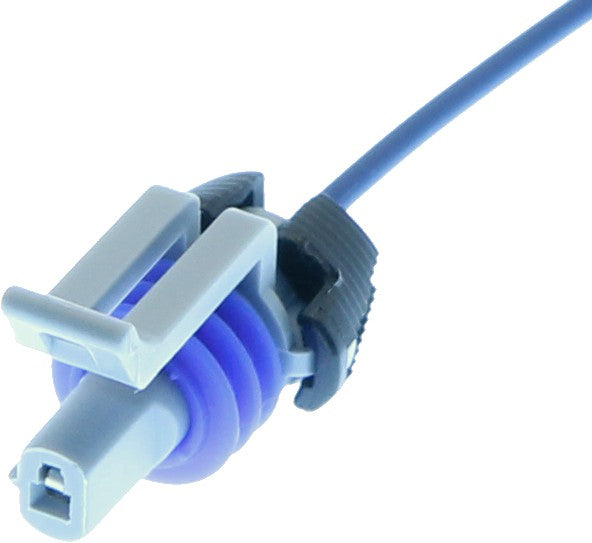

- Uses the same Delphi/Packard connectors, terminals, and seals as the factory wiring harness.
- Assembled in our shop using the factory correct cross linked polyethelene high temperature TXL wire in the proper gauge.
- Approximately 12" long wires.
- Assembled in the USA
- If you need a longer length or different color wires please email us, we will be happy to build it for you.
Cavity Designation and Wire Colors
A: 18 Ga Dark Blue : Sensor Signal
Application
Fits the following models:
- 1996-2002 Camaro 3.8L
- 1996-2002 Firebird 3.8L
Other Applications (3.1L and 3.8l)
- 1999-2000 Cadillac Escalade
- 1991-2005 Chevrolet Astro, Blazer, C/K1500-C/K3500, Express, & G10-G30
- 1991-2005 Chevrolet Impala, P30, S10, Suburban, & Tahoe
- 1992-2005 GMC C/K1500-C/K3500, G1500-G3500, Jimmy, & Safari
- 1992-2005 GMC Savana, Sonoma, Suburban, Typhoon, & Yukon
- 1996-1997 Oldsmobile Bravada
May fit other models and applications, please review picture(s).
