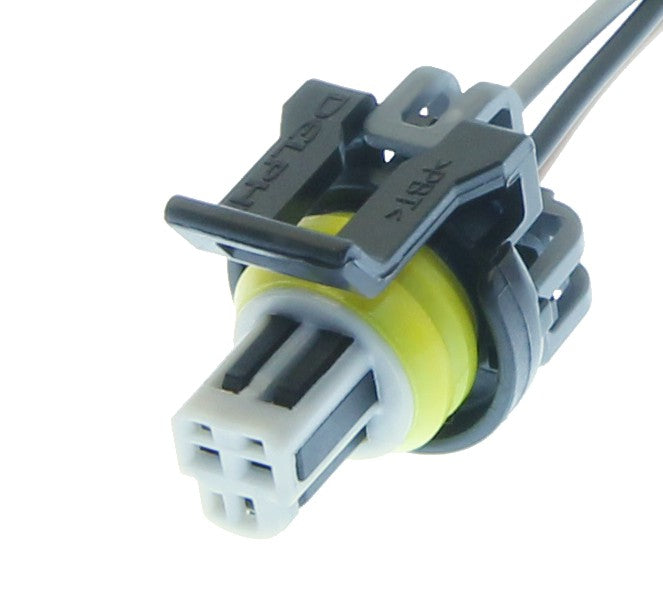

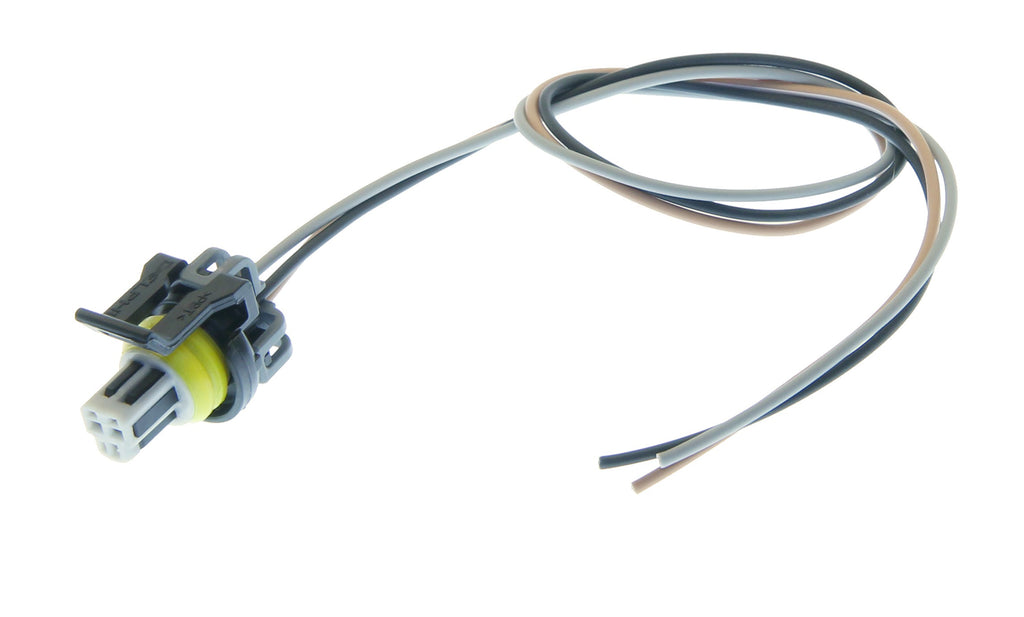

Oil Pressure Sensor Connector Pigtail LS3 6.2 (2008-2017)

  • Sale
  • Regular price $9.95


Oil Pressure Sensor Connector Pigtail

2008-2017 LS3 6.2

Details

  • EFI Performance Wiring part # 210-0254
  • Interchange part #s: PT1825
  • New pigtail connector kit to repair the Oil Pressure Sensor connector for the listed applications.
  • Uses the same Aptiv (Delphi) connector, terminals, seals and parts as the original factory connector.
  • Assembled in our shop using the factory correct cross linked polyethelene high temperature TXL wire in the proper gauge.
  • We use production Delphi or Rennsteig tooling for all crimps to ensure proper performance.
  • Approximately 12" long leads from back of connector gives you extra length to work with.
  • Assembled in the United States.

Wire

A: 20 Ga Black
B: 20 Ga Gray
C: 20 Ga Tan with White Stripe

(Please email us for custom wire colors and/or lengths, we'll be happy to accomodate your needs.)

Application

2008-2017 GM LS3 Engines
