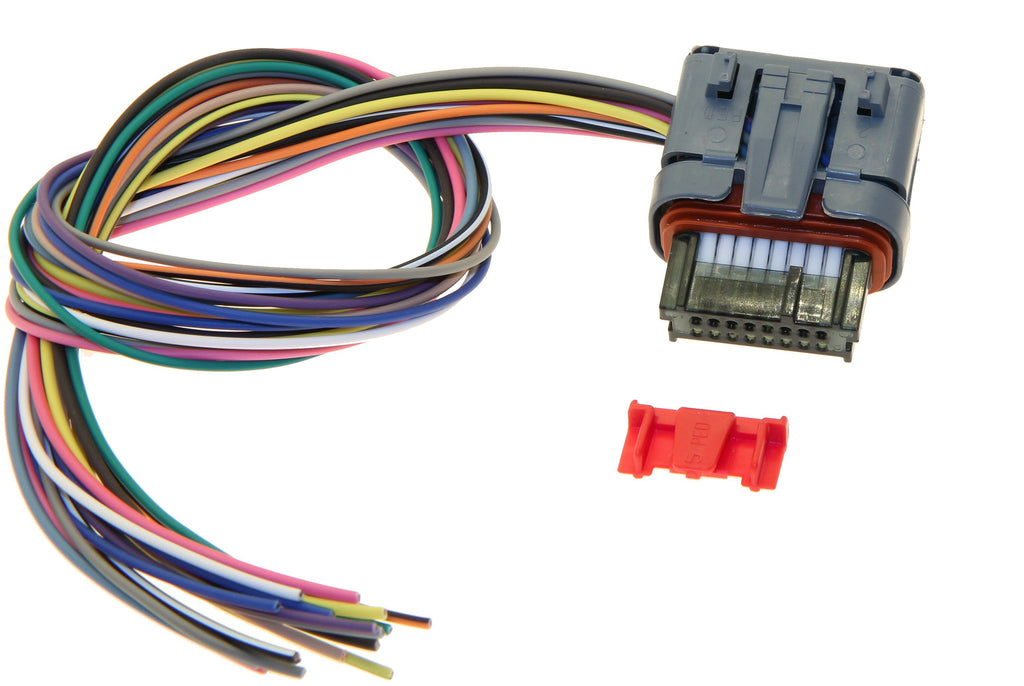

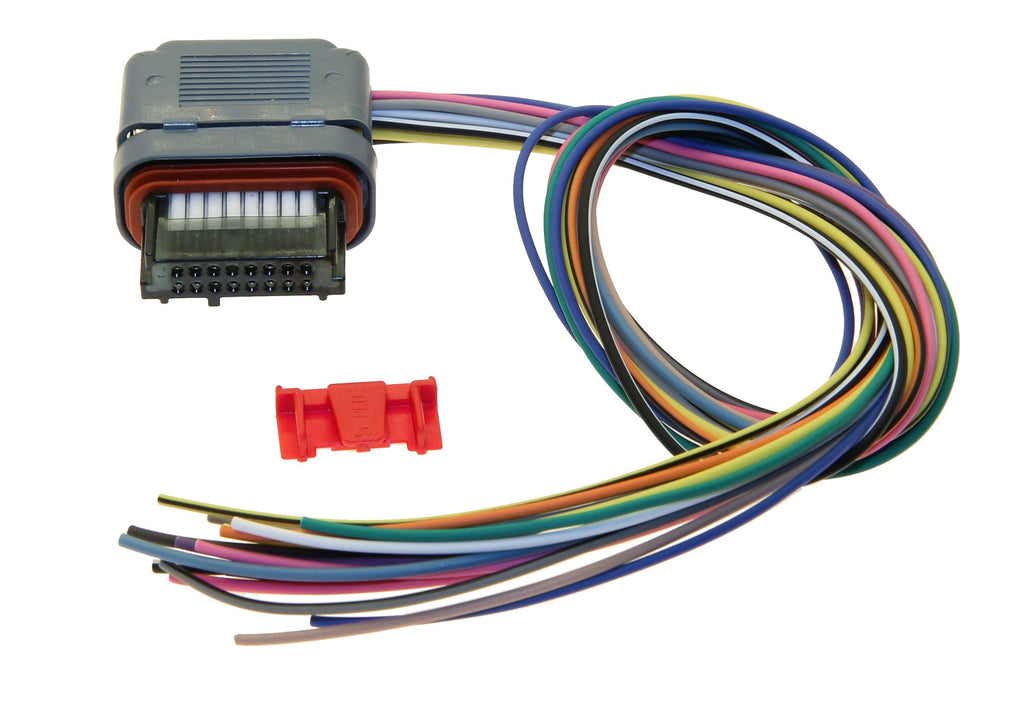

Throttle Actuator Control Module TAC Module Pigtail
GM 6.0l LQ9 2002-2009
(Assembled using Genuine Aptiv/Delphi Components)
Details
- EFI Performance Wiring Part # 210-0299
- New pigtail assembly to repair the Throttle Actuator Control Module Pigtail for the listed applications.
- Uses the same Aptiv/Delphi connector, terminals, seals and accessories as the factory wiring harness.
- Uses the most common wire colors for the application.
- Assembled in our shop using the factory correct cross linked polyethelene high temperature TXL wire in the proper gauge.
- All terminals crimped using Rennsteig or Delphi production tooling.
- Long 18" leads from back of the connector.
- Assembled in the USA
Wire Colors
Connector Cavity and Wire
- 1 :20 ga Blue
- 2: 20 ga Green
- 3: 20 ga Violet
- 4: 20 ga Blue
- 5 20 ga Gray with Black Stripe
- 6: 18 ga Light Blue
- 7: 18 ga Pink
- 8: 18 ga Brown
- 9: 20 ga Yellow with Black Stripe
- 10: 20 ga White
- 11: 20 ga Pink
- 12: 20 ga Tan
- 13: 20 ga Orange with Black Stripe
- 14: 20 ga Gray
- 15: 18 ga Black with White Stripe
- 16: 18 ga Yellow
Application
Fits the following models:
- 2002-2009 General Motors 6.0l LQ9
May fit other models and applications, please review picture(s).
