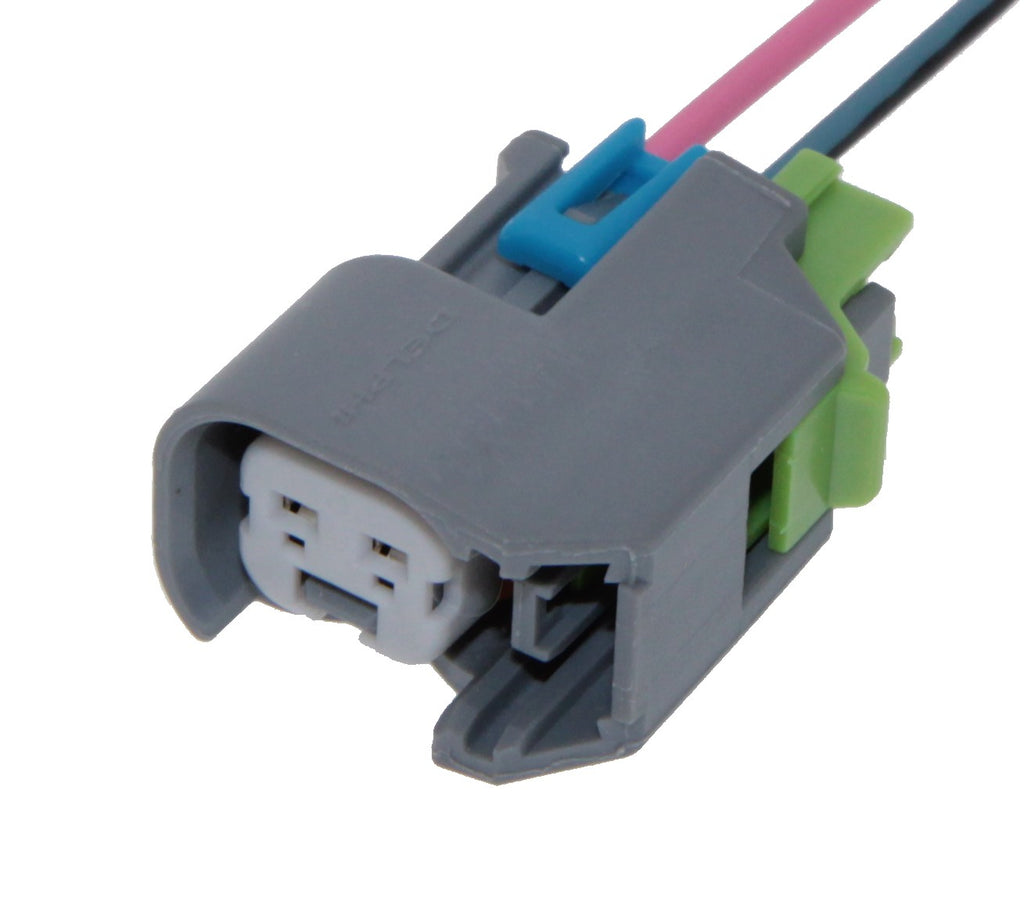

EV6 Fuel Injector Pigtail Connector Wiring
LS2, LS3, LS7, LS9 GM Injector #4
Pink and Light Blue\Black Stripe
Details
- Used to repair the Fuel Injector connector for the listed applications.
- EFI Performance Wiring Part # 210-0304
- Interchange Part #s: PT1846, PT1718, 88988313, 89046838
- Uses the same Delphi/Packard connector, terminals, and seals as the factory wiring harness.
- All terminals crimped using factory tooling.
- Assembled in our shop using the factory correct cross linked polyethelene high temperature TXL wire.
- Long 12" leads from back of connector.
- Assembled in the USA
Connector Cavity and Wire
- A: 18 Ga Pink TXL wire
- B: 18 Ga Light Blue\Black Stripe TXL wire
If your application requires different wire colors, please let us know and we will assemble it at no additional charge.
Application
Fits the following models:
General Motors LS2, LS3, LS7, and LS9 motors.
May fit other GM models and applications, please review picture(s).
Interchange\Compatibility
- Replacement for ACDelco Pigtail PT1846
- Replacement for GM Pigtail Part# 88988313
- Compatible with ACDelco Pigtails PT1372, PT1672, PT1714, PT1763, PT2160,
- Compatible with GM Pigtail Part #s: 15306318, 89046636, 89046636, 88988054, 88861094
- Compatible with Ford / Motorcraft #'s: WPT871, WPT863, WPT177, WPT159
- Compatible with Ford / Motorcraft part #s: 6U2Z-14S411-GA, 5U2Z-14S411-ZA, 1U2Z-14S411-ANA, 1U2Z-14S411-BPA
