Assembled using Genuine Aptiv / Delphi components (GM Original Equipment)
Details
- EFI Performance Wiring part # 210-0226

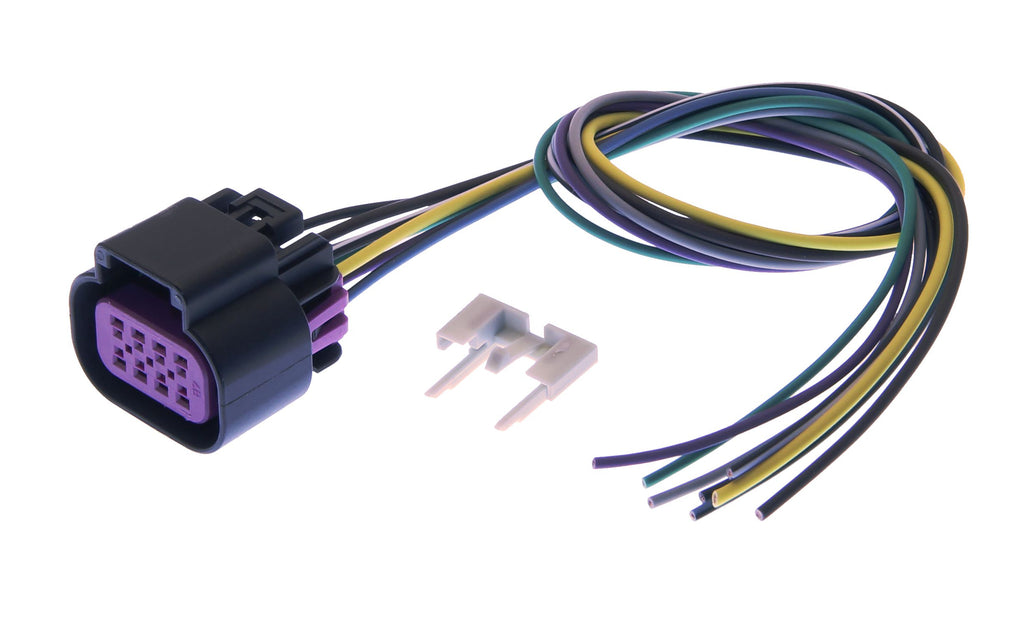

- New pigtail assembly to repair the Throttle Body connector for the listed applications.
- Uses the same Aptiv/Delphi connector, terminals, and seals as the factory wiring harness.
- Assembled in our shop using the factory correct cross linked polyethelene high temperature TXL wire in the proper gauge.
- Uses factory correct parallel striped wire
- Equivalent to OEM part #s: 13580112, 19367637, 88986255, 88986452
- Interchanges with 645800, 100-00341
- Long 12" leads from back of connector.
Connector Cavities and Wire Size/Color
- A: 18 Gauge Yellow
- B: 20 Gauge Black/White Stripe
- C: 18 Gauge Brown
- D: 20 Gauge Black
- E: 20 Gauge Light Blue/Black stripe
- F: 20 Gauge Purple
- F: 20 Gauge Green
- G: 20 Gauge Gray
Application
Fits the following models:
- 2003-2007 GM Trucks with LQ9 6.0L engines
