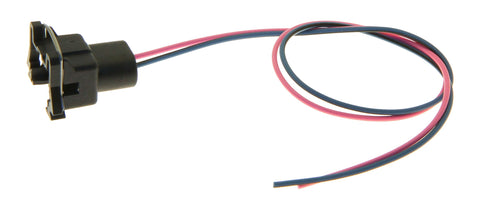

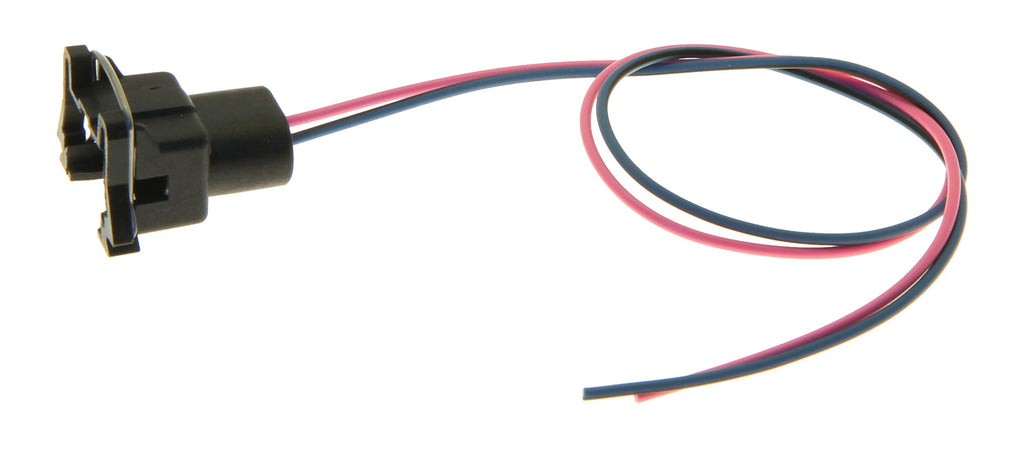

LS1 LT1 Fuel Injector 4 Pigtail Connector Wiring Camaro Corvette GM
Assembled from genuine Delphi components (GM Original Equipment)
- EFI Performance Wiring Part # 210-0294
- Interchange Part # PT113
- Used to repair the Fuel Injector connector for the listed applications.
- Uses the same Delphi/Packard connector, terminals, and seals as the factory wiring harness.
- Assembled in our shop using the factory correct cross linked polyethelene high temperature TXL wire.
- Assembled using the most commonly found 1998-2002 GM wire color.
- Long 12" leads from back of connector.
If your application requires different wire colors, please let us know and we will assemble it at no additional charge.
Connector Cavities and Wire
- A: 20 ga Pink
- B: 20 ga Light Blue\Black Stripe
Fits the following models:
1993-1997 Camaro 350 LT1
1993-1997 Firebird 350 LT1
1992-1995 Corvette 350 LT1
1993-1995 Corvette 350 LT5
1996 Corvette 350 LT4
1998-2002 Camaro 350 LS1
1998-2002 Firebird 350 LS1
1997-2002 Corvette 350 LS1
2001-2004 Corvette 350 LS6
See other items for TPI correct pigtails. May fit other GM models and applications, please review picture(s).
