Manifold Absolute Pressure Sensor Connector Pigtail Wiring 92-97 LT1 LT4 Camaro Corvette MAP

  • Sale
  • Regular price $9.95

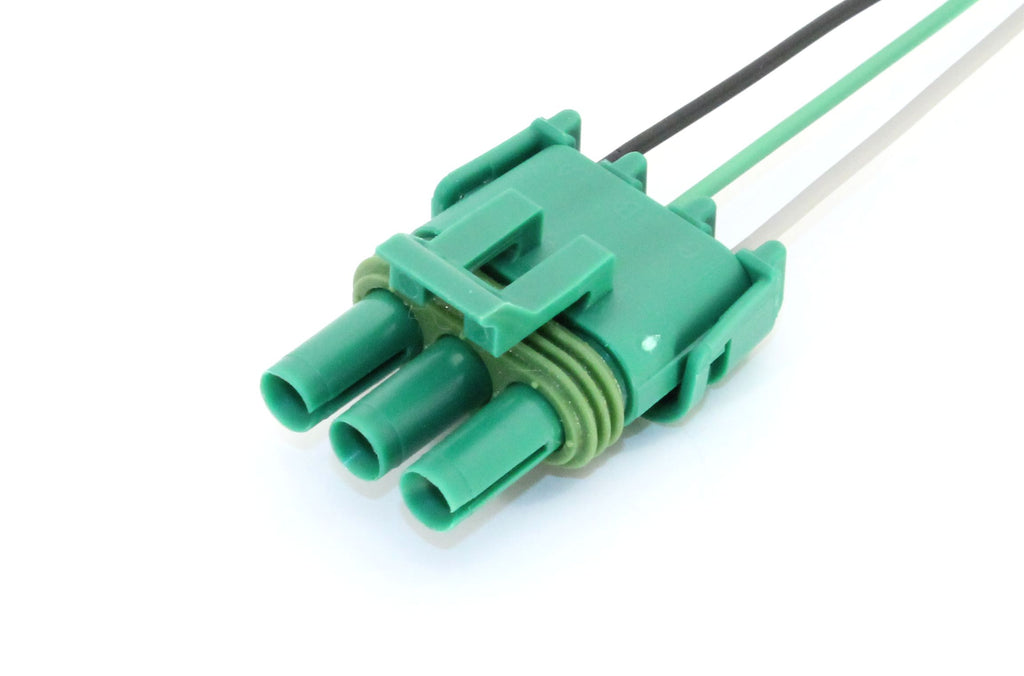

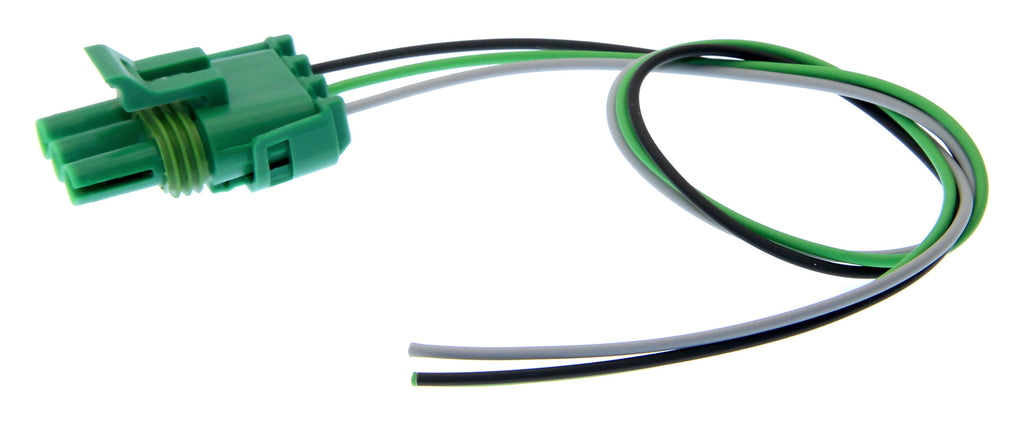

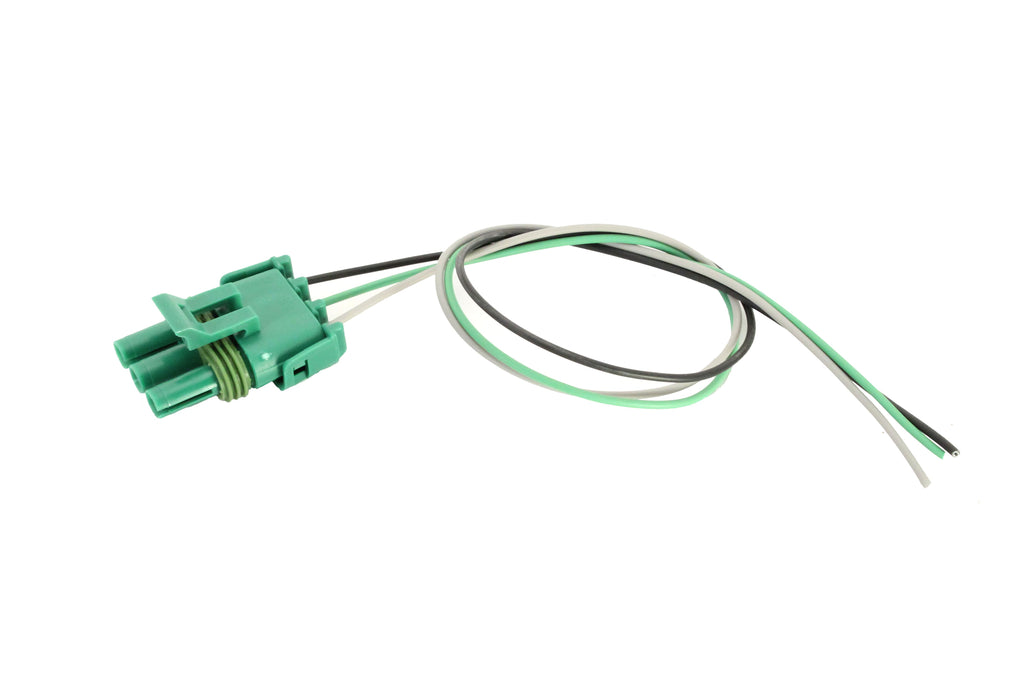

Manifold Absolute Pressure Connector Pigtail Kit

92-97 LT1 LT4 Camaro Firebird and Corvette

Details

  • EFI Performance Wiring part # 210-0103
  • Interchange part #s: PT123, 12085502
  • New pigtail assembly to repair the MAP Sensor connector for the listed applications.
  • Uses the same Delphi/Packard connector, terminals, and seals as the factory wiring harness.
  • Assembled in our shop using the factory correct cross linked polyethelene high temperature TXL wire in the proper gauge.
  • GM correct Black, Light Green, and Gray wiring.
  • Long 12" leads from back of connector.
  • Assembled in the USA

If your application requires different wire colors, please email us in advance and we will let you know if we have the correct color wire in stock.

Application

Fits the following models:
1992-1995 Corvette 350 LT1
1996 Corvette 350 LT4
1993-1997 Camaro 350 LT1
1993-1997 Firebird 350 LT1

(Also fits the following but is a lighter gauge of wire)

1990-1992 Camaro 305/350 TPI
1990-1992 Firebird 305/350 TPI
1988-1992 Camaro 305 TBI
1988-1992 Firebird 305 TBI
1990-1991 Corvette 350 TPI

May fit other models as well, please review picture(s).
