Throttle Actuator Control Module TAC Module Pigtail GM 6.0 LQ4 2003-2008

  • Sale
  • Regular price $32.95

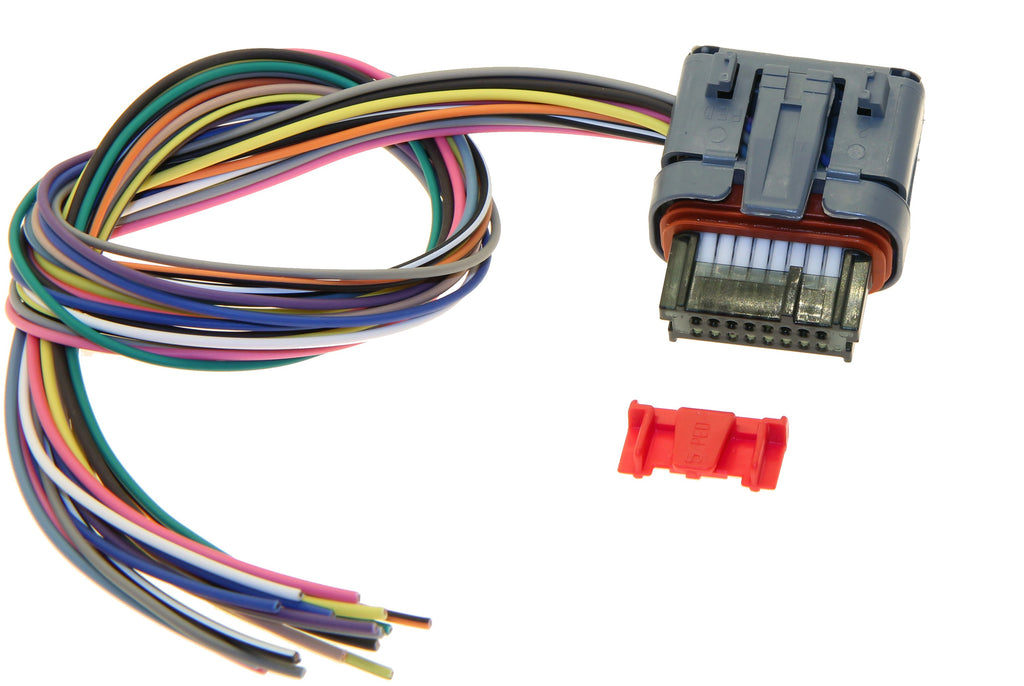

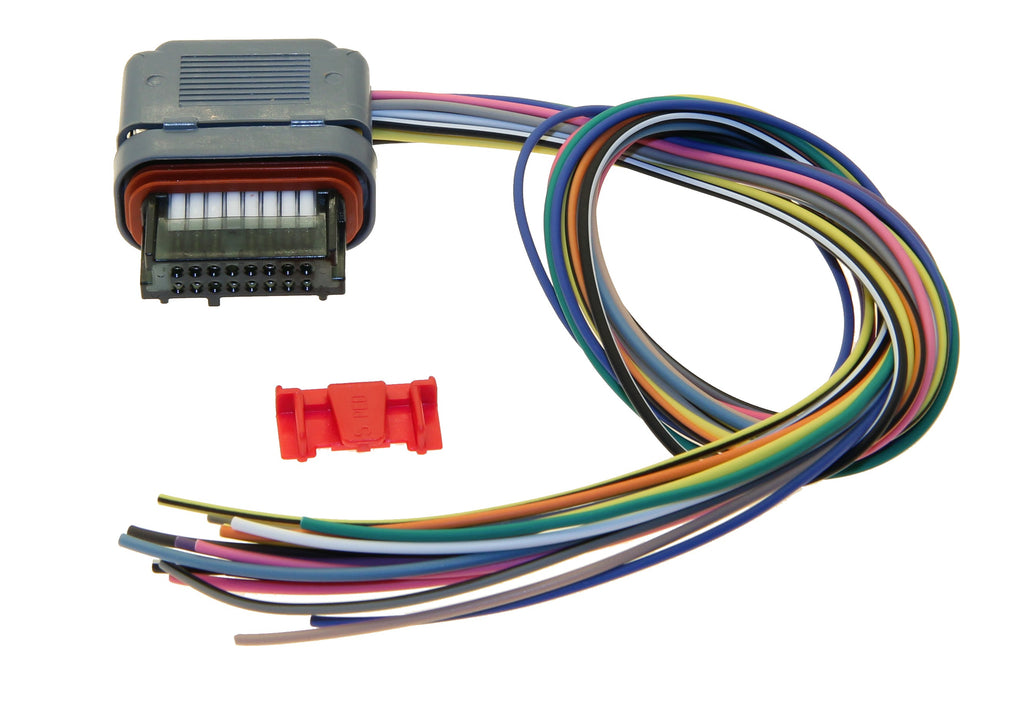

Throttle Actuator Control Module TAC Module Pigtail

GM 6.0 LQ4 2003-2008

(Assembled using Genuine Aptiv/Delphi Components)

Details

  • EFI Performance Wiring Part # 210-0281
  • New pigtail assembly to repair the Throttle Actuator Control Module Pigtail for the listed applications.
  • Uses the same Aptiv/Delphi connector, terminals, seals and accessories as the factory wiring harness.
  • Uses the most common wire colors for the application.
  • Assembled in our shop using the factory correct cross linked polyethelene high temperature TXL wire in the proper gauge.
  • All terminals crimped using Rennsteig or Delphi production tooling.
  • Long 18" leads from back of the connector.
  • Assembled in the USA

Wire Colors

Connector Cavity and Wire
  • 1 :20 ga Blue
  • 2: 20 ga Green
  • 3: 20 ga Violet
  • 4: 20 ga Blue
  • 5 20 ga Gray with Black Stripe
  • 6: 18 ga Light Blue
  • 7: 18 ga Pink
  • 8: 18 ga Brown
  • 9: 20 ga Yellow with Black Stripe
  • 10: 20 ga White
  • 11: 20 ga Pink
  • 12: 20 ga Tan
  • 13: 20 ga Orange with Black Stripe
  • 14: 20 ga Gray
  • 15: 18 ga Black with White Stripe
  • 16: 18 ga Yellow


Application

Fits the following models:

  • 2003-2008 General Motors 6.0l LQ4

May fit other models and applications, please review picture(s).
